Gprime
Gprime Series
LED Rental Panels
Pixel Pitch Options: 1.2mm,1.5mm, 1.9mm,2.6mm, 2.9mm, 3.9mm

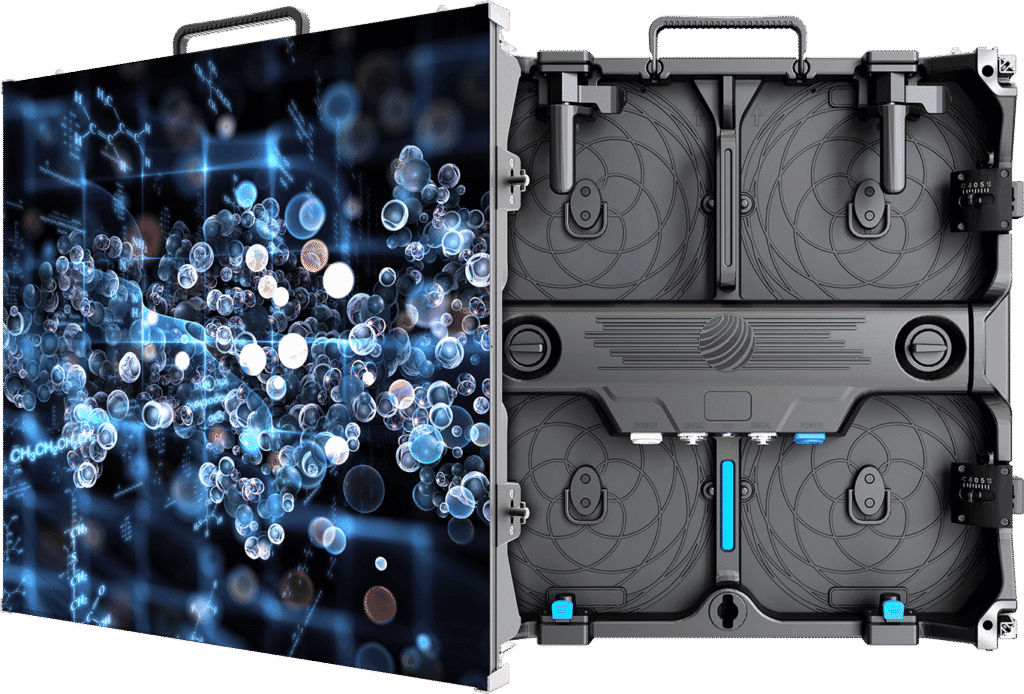

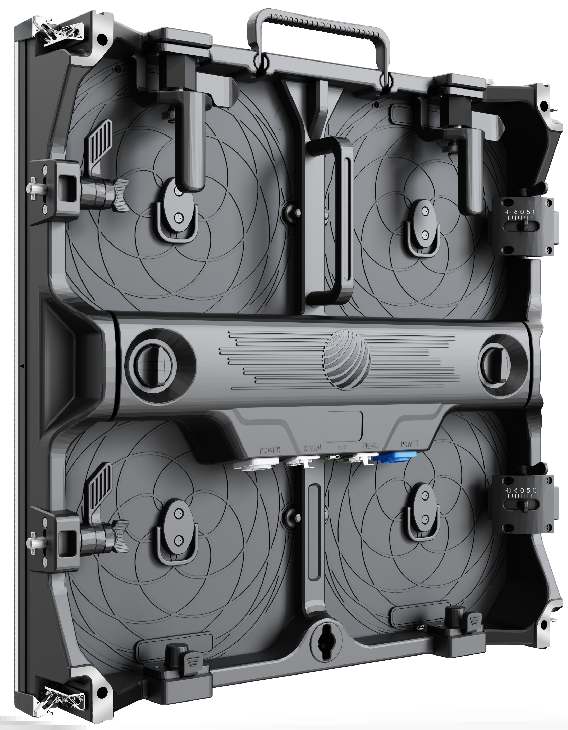

The Gprime Series is a premium rental LED panel engineered for fast installation, reliable performance, and long-term durability in high-demand event environments. Designed for touring productions, concerts, trade shows, corporate events, and large-scale staging, the Gprime Series delivers exceptional efficiency with its lightweight structure, GOB-protected modules, and user-friendly assembly system. With a universal panel design, professional arc-lock capability, and front or rear maintenance options, this panel series offers rental companies the flexibility and consistency needed to support a wide range of indoor LED display applications.
Features
- Light weight: 15.4 lbs/panel
- Handle positioned in the middle for easy one-person installation
- Corner protection
- Refresh rate 7680HZ
- Curve Degree: -10° to +10°
- Universal panel design for all pixel pitches
- No differences among all four modules
- Modules can be removed from the front
Benefits of the Gprime Series LED Rental Panels

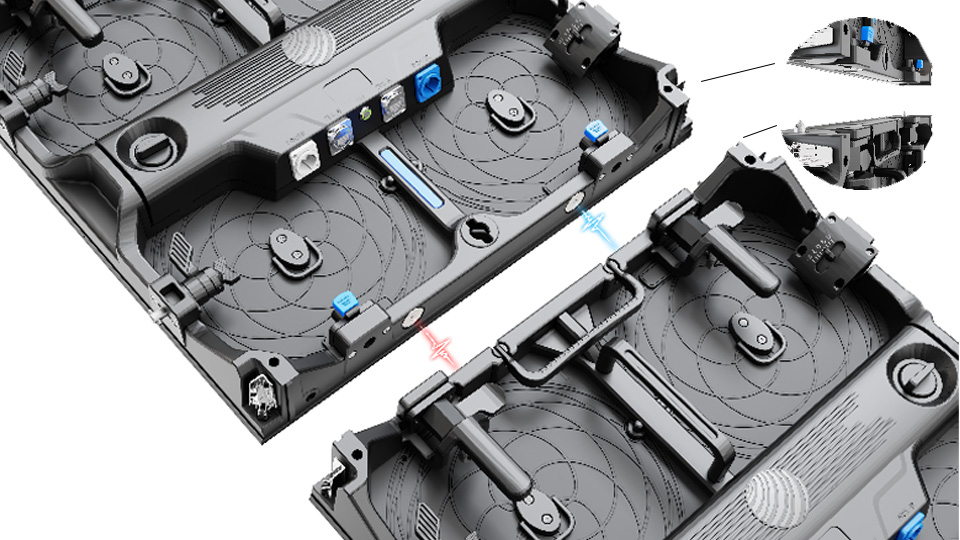

Magnets on the top and bottom of the panel for fast alignment
There are strong magnets on the top and bottom of the Gprime panels, allowing the panels to easily snap into place and making installation much easier.

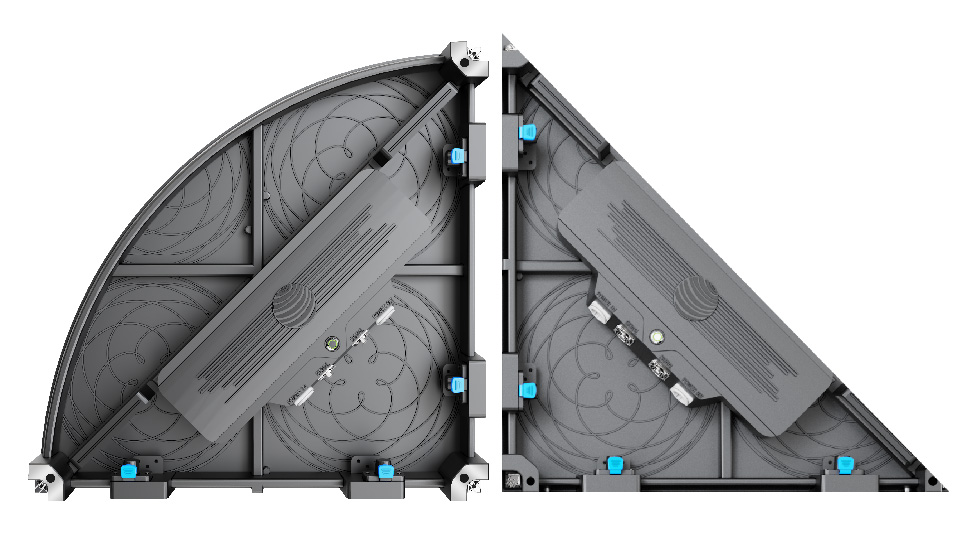

Triangle and Quadrant Shaped Panels Available
The Gprime series also offers triangle- and quadrant-shaped panels. These irregular-shaped panels can be locked together with standard Gprime panels to create unique screen shapes, such as a Christmas tree or an oval.
Durable GOB Module Surface
Built with GOB (Glue-On-Board) technology, the module surface is touchable, scratch-resistant, and impact-resistant. This added protection helps prevent damage during frequent rental use, lowers repair costs, and keeps your fleet in better condition over time.

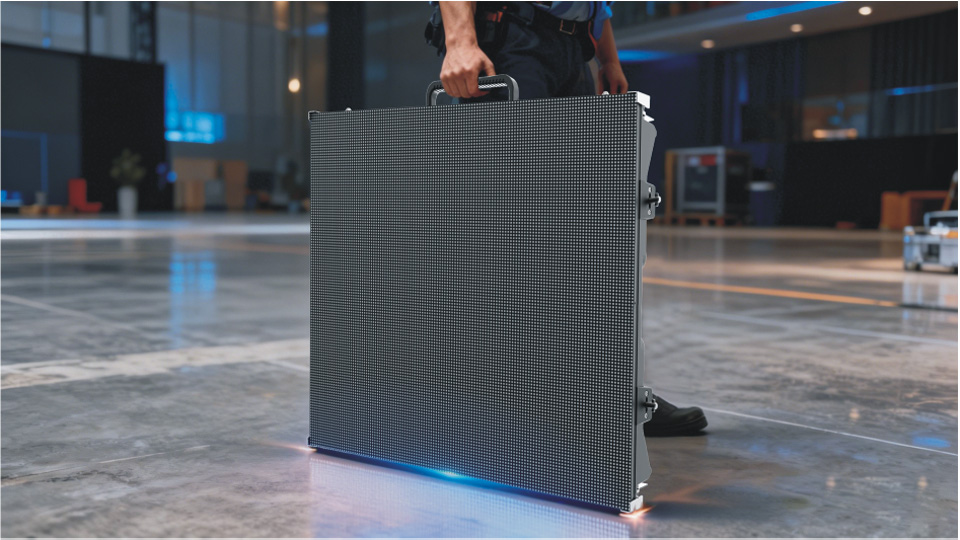

Corner Protection for Safer Transport
Each panel features anti-collision corner protection to help prevent LED bead damage during movement and setup. This reduces maintenance downtime and extends the lifespan of your equipment.
Universal Panel Design for All Pixel Pitches
Modules with different pixel pitches share the same universal panel design, giving customers the option to replace only the modules instead of the entire panel in a few years.

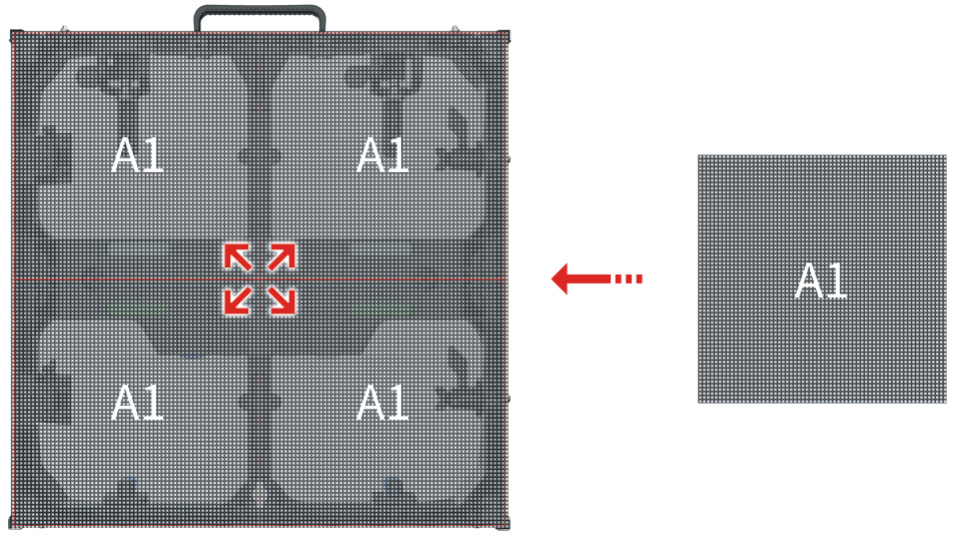

No Difference Between All Four Modules
There is no difference between the left- and right-side modules, so each module can be installed in any of the four locations on the panel.

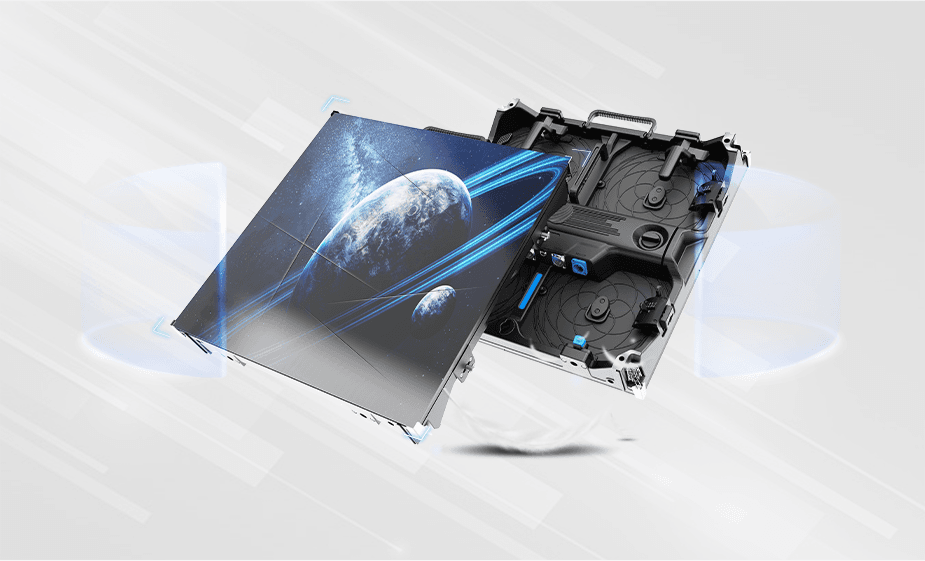

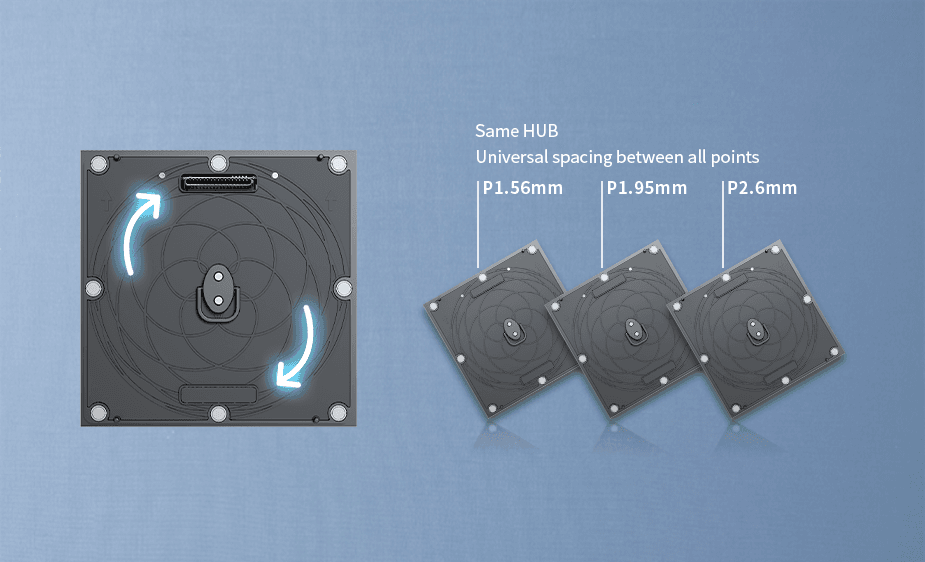

Modular Design & Fixed on Any Corner
- The module is not divided into top and bottom, and can be installed at will, The module comes with a fool-proof design of the positioning post, which will never be plugged in reverse, which is easy to maintain and install
- Platform-based setup, one hub for all point spacing

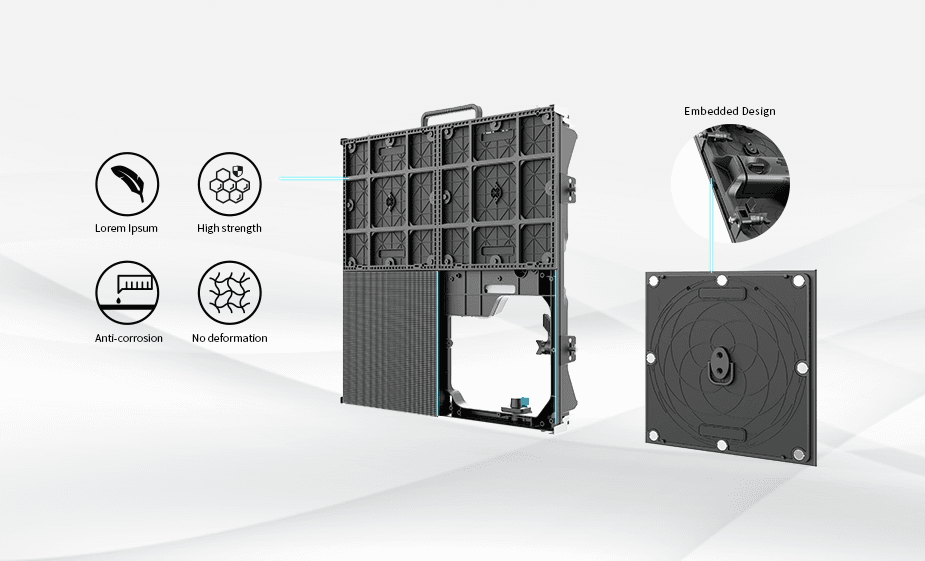

Reliable Structural Strength
- The cabinet uses a high-precision light steel material that provides strength, corrosion resistance, and long-term stability. This material choice helps extend the operational life of each panel, even under frequent use and environmental stress.

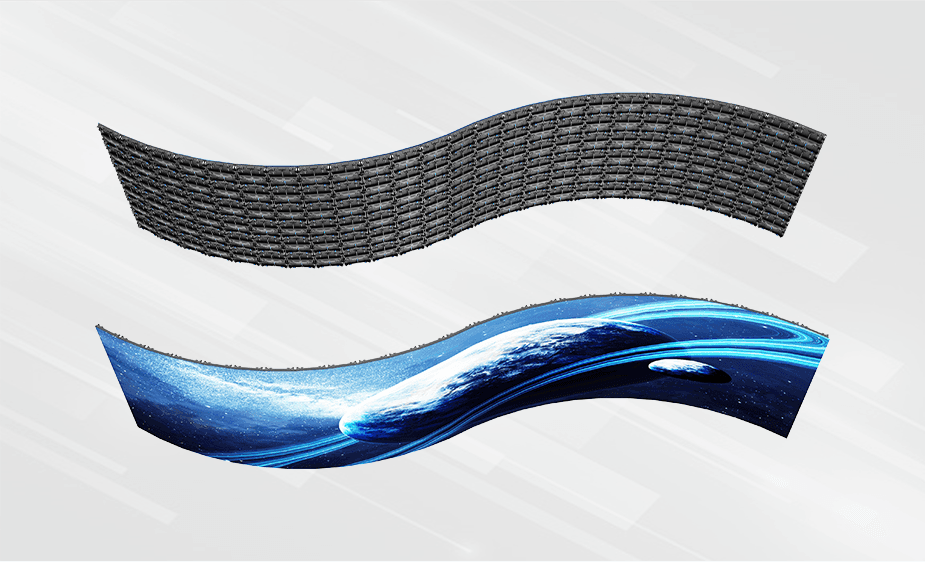

Curved Screen Capability

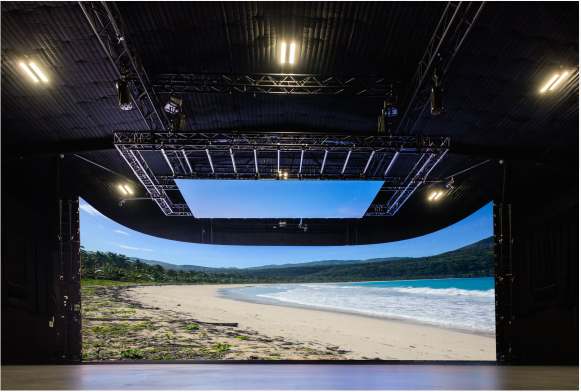

With an optional arc lock offering -10° to +10° adjustment, the Gprime Series can support both internal and external curved configurations. This makes it a versatile choice for creative stage designs, seamless wave walls, and custom event builds.
Smooth, High-Quality Visual Output
The combination of high-quality lamp beads, 7680Hz refresh rate, 16-bit contrast performance, and 1200-nit brightness ensures a smooth, flicker-free viewing experience. This helps deliver cleaner visuals for audiences and improved performance in camera-sensitive environments.

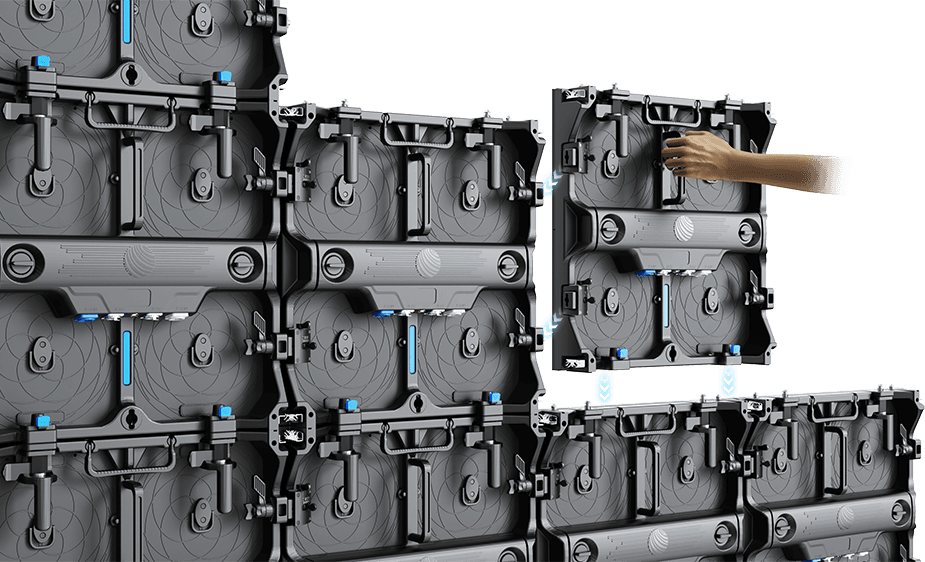

Fast, One-Person Installation
- The Gprime Series is designed to streamline event setup. With a center-positioned handle and one-hand lock system, one technician can install each panel quickly and efficiently. This reduces setup time, minimizes labor requirements, and improves overall workflow on fast-paced job sites.

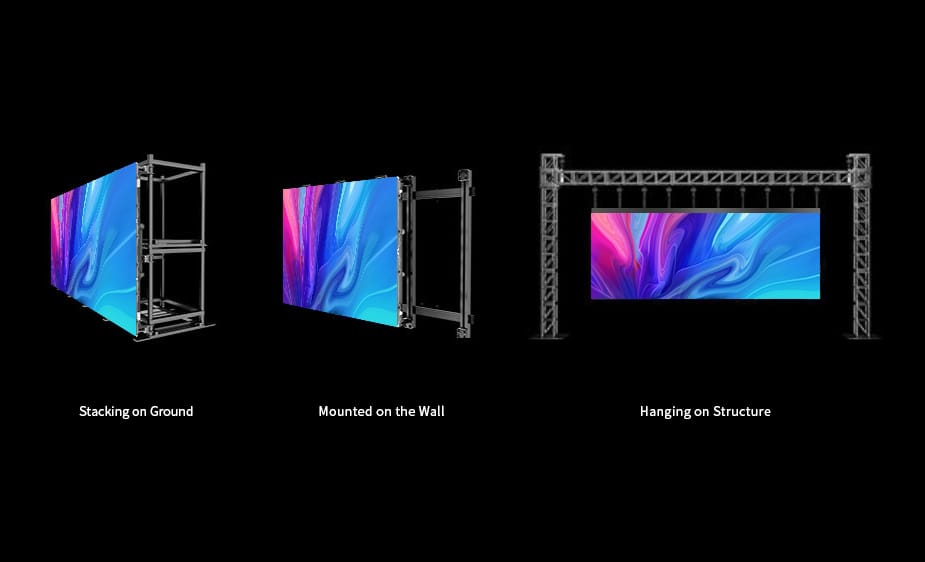

Multiple Installation
- Methods It can be hoisted, mounted and installed on the back frame

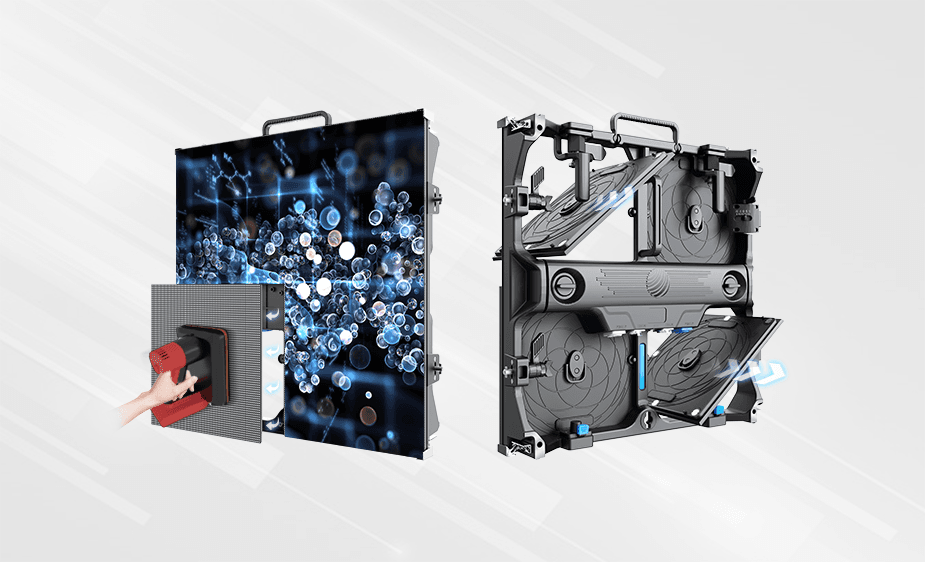

Front and Rear Maintenance Access
- Panels can be serviced from either the front or rear, helping crews complete repairs or replacements more efficiently. This flexibility supports tighter installation spaces and minimizes screen downtime.

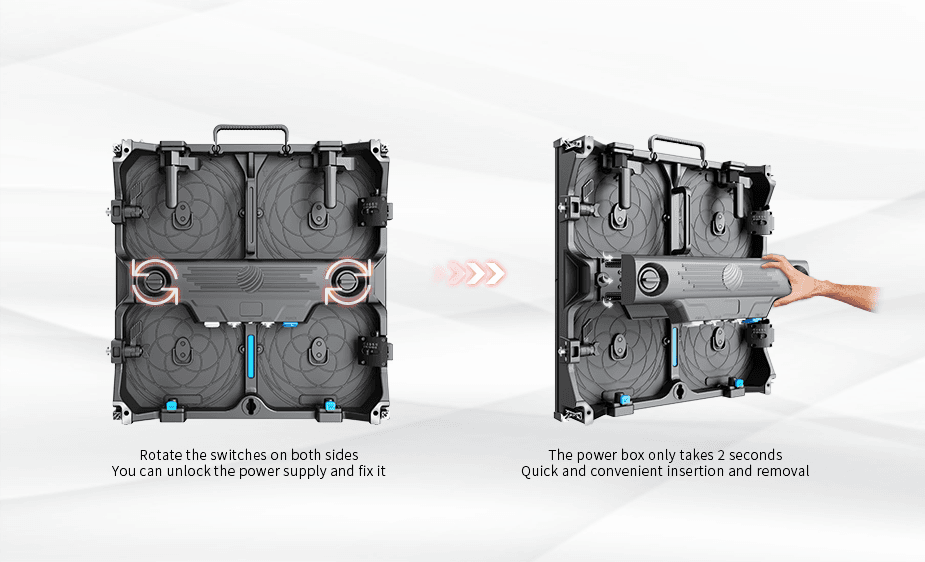

Quick-Release Power Box for Easy Service
The horizontally mounted power box features a dual-knob design that allows for fast, one-step removal and installation. This simplifies maintenance and reduces repair times during live events or busy rental schedules.
Technical Parameter
| Product | P1.56 | P1.953 | P1.953 (XR) | P2.6 | P2.6 (XR) | |
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.5625mm | 1.953mm | 1.953mm | 2.604mm | 2.604mm | |
| Assembly Technology | GOB | GOB | GOB | / | / | |
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | |
| Brightness | 1000nits | 1200nits | 1200nits | 1200nits | 1200nits | |
| Scan Rate | 1/20 | 1/16 | 1/8 | 1/16 | 1/8 | |
| Refresh Rate | 7680HZ | 7680HZ | 7680HZ | 7680HZ | 7680HZ | |
| Panel Size | W19.7"xH19.7" (500x500mm) | |||||
| Panel Resolution (Pixel) | 320x320 | 256x256 | 256x256 | 192x192 | 192x192 | |
| Module Size | H9.85" xW9.85" | |||||
| Panel Material | Die-casting Aluminum | |||||
| Panel Weight | 15.4 lbs | |||||
| Protection Level | IP34 | |||||
| Maintenance | Rear Service & Module Front Service | |||||
| Max Power Consumption | 143 watts | 143 watts | 143 watts | 143 watts | 143 watts | |
| Average Power Consumption | 71.5 watts | 71.5 watts | 71.5 watts | 71.5 watts | 71.5 watts | |
| Grey Scale | 16bit | |||||
| Viewing Angle | H160°, V160° | |||||
| Curve Degrees (optional) | -10°~+10° | |||||
| Input Voltage | Wide Range 100-240VAC | |||||
| Working Temperature | -22°F to+ 149°F | |||||
| Working Humidity | 10%-90%RH | |||||
| Color Temperature | 6500-9500K | |||||
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO | |||||
