Gair

Gair Series

Indoor
3.9-7.8mm

Transparent Indoor LED Built for Architecture

The Gair Series occupies a distinct category in GCL’s indoor product line. Where most LED displays are designed to fill a wall, the Gair is designed to become part of the space — a transparent, lightweight display that lets light and sightlines pass through while still delivering vivid, high-refresh content. For designers, architects, and integrators working on projects where the display needs to coexist with the environment rather than dominate it, the Gair opens up possibilities that conventional LED panels simply can’t offer.

Features

Transparency That Changes What's Possible

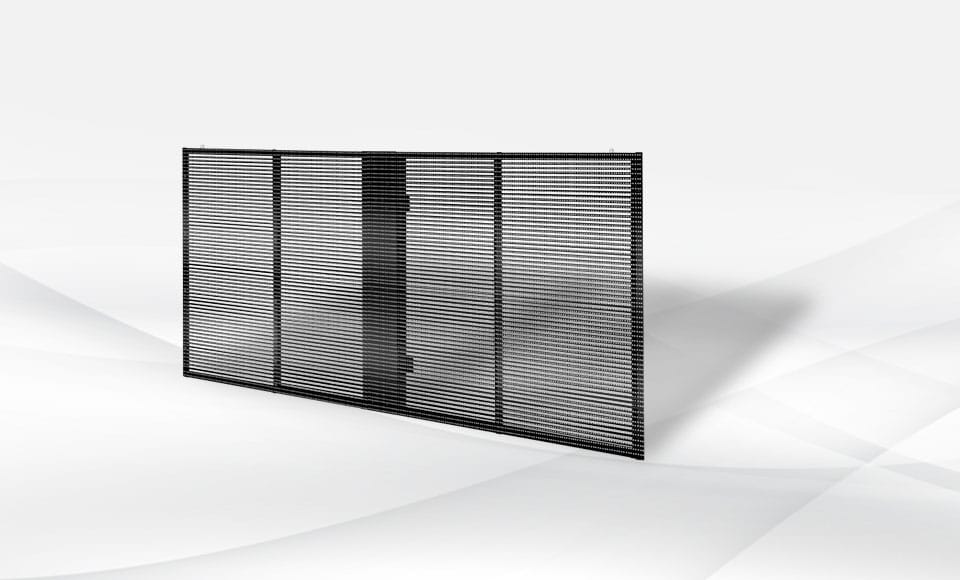

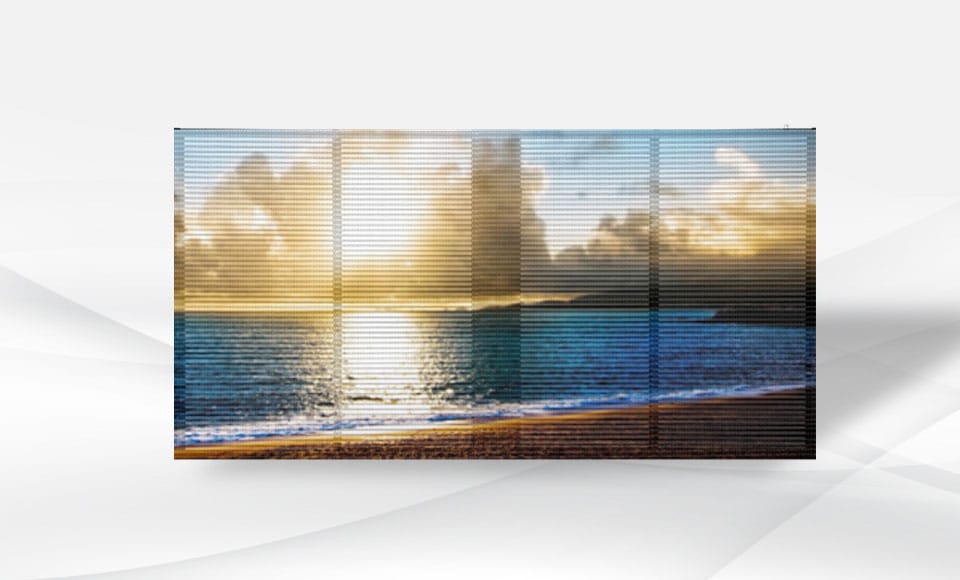

At 50% or greater transparency, the Gair reads as a display when content is active and nearly disappears when it isn’t. This makes it the right tool for applications where maintaining visual openness matters — glass storefronts that need to stay inviting, partition walls that separate spaces without blocking them, architectural features where a solid display would feel heavy or out of place.

The transparent acrylic front panel also contributes to an IP42 protection rating, giving the Gair a meaningful degree of dust and contact resistance for a product in this category — practical protection without compromising the open, airy aesthetic the product is built around.

Light, Slim, and Easy to Work With

At 7kg per panel and just 3.5cm deep, the Gair is genuinely lightweight by LED standards. That matters both during installation — less structural reinforcement required, faster handling — and in terms of what kinds of surfaces and structures can realistically support it. Suspended ceiling grids, glass facades, lightweight partition systems, and retail fixture frameworks that would struggle under a conventional LED cabinet can accommodate the Gair without modification.
The slim profile keeps the display from reading as a thick object mounted to a surface. In retail and hospitality environments where the aesthetic of the installation is part of the product, that thinness is as important as the transparency.

Curving for Architectural Flexibility

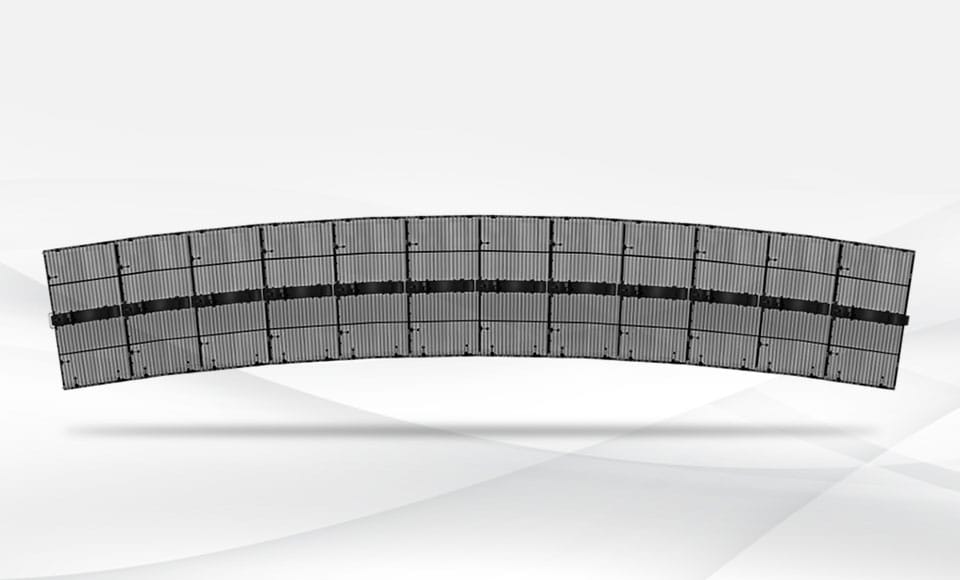

The Gair supports a curving range of –5° to +5° per panel, with an optional curving lock that fixes the angle in place once the configuration is set. This allows the display to follow gentle curves in architectural surfaces — a slightly curved storefront window, a concave or convex feature wall, a curved ceiling installation — without requiring custom fabrication. For projects where a flat display would fight the geometry of the space, the Gair works with it instead.

A Design Built to Simplify the Install

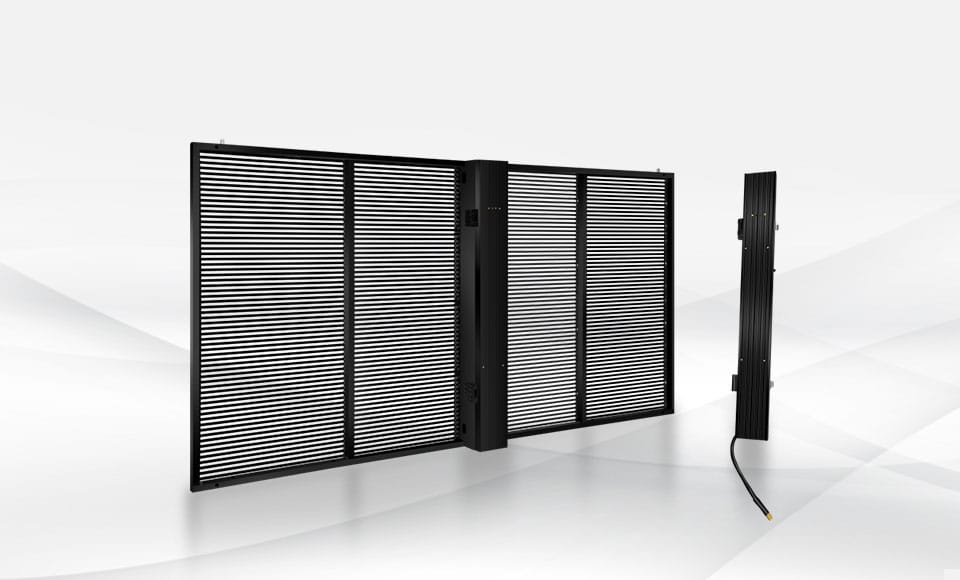

Several of the Gair’s design choices directly reduce installation and maintenance complexity. The latch-attached power box eliminates loose hardware and speeds up both initial build and any future service work. No left/right differences between modules means any panel can go in any position — crews don’t need to sort or orient components before they go up. Two available panel sizes give integrators layout flexibility without requiring custom cuts or specialized filler pieces.
The integrated back cover design keeps the rear of the display organized and accessible, and front-and-rear service access means the display can be maintained from whichever side the installation allows.

Excellent Refresh Rate

The Gair’s refresh rate is the same standard GCL holds across its indoor lineup — fully camera-ready, flicker-free performance that holds up whether the content is being viewed live or captured on camera. For retail environments that run social content or product campaigns on their displays, or hospitality spaces that photograph well as part of their brand, this matters as much in a transparent panel as it does in a solid one.

Where the Gair Belongs

The Gair is the right call when the brief calls for a display that integrates into the space rather than interrupting it:

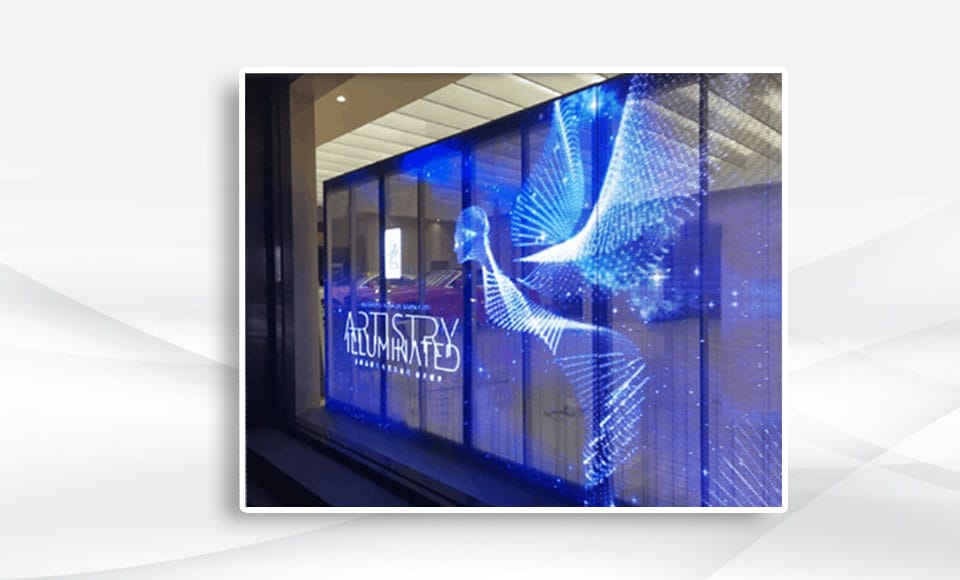

Retail storefronts and window displays — run content without blocking the view into the store or sacrificing natural light
Corporate lobbies and reception areas — create a dynamic visual presence without the visual weight of a solid video wall
Showrooms and brand experiences — layer content over physical products or environments for an immersive effect
Hospitality and entertainment venues — divide or define spaces with a display element that stays light and open
Architectural feature installations — glass walls, atriums, and curtain facades that call for a display solution as considered as the architecture itself

Technical Parameter

Product	P2.6-5.2	P3.9-7.8	P10.4
Pitch	2.6-5.2mm	3.9-7.8mm	10.4mm
Panel Size	1000*500mm
Module Size	500*125mm
Panel Weight	5KG
Transparency	50%
Panel Maintenance	Front & Rear Service

Shipped and Supported from Texas

The Gair ships from GCL’s Texas warehouse, inspected and ready to install. GCL’s U.S.-based team can assist with layout planning, curving configuration, and structural requirements before the project breaks ground — and is available for aftersales support long after the display is live.
