Gmesh
Gmesh Series
Outdoor Fixed Installation
10.42mm/15.6mm/25mm
10.42mm/15.6mm/25mm
Most LED displays close off whatever is behind them. The Gmesh is designed to do the opposite. With up to 50% light transmittance, it lets natural light, sightlines, and architectural character show through — while still delivering vivid, high-brightness content to the street. For projects where a solid panel simply won’t work, the Gmesh opens up possibilities that most conventional displays can’t touch.
WHERE IT WORKS
The Gmesh is purpose-built for installations where transparency, weight, or wind load are project constraints as much as visual performance:

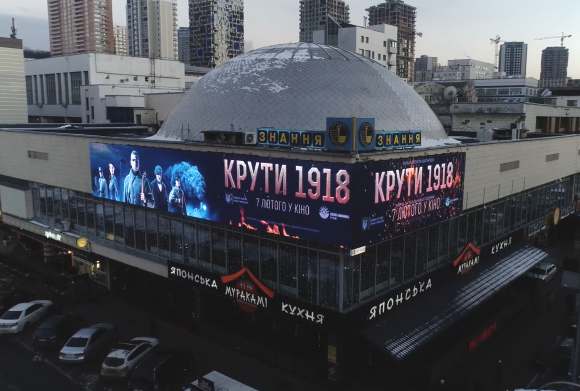

- Building facades & glass curtain walls — wraps a structure in content without blocking light transmission into the building or obscuring the architecture behind it
- Atriums & covered outdoor spaces — lightweight panels and low wind resistance make large overhead or semi-enclosed installations practical where solid displays aren't an option
- Retail storefronts — high-brightness SMD and DIP configurations keep content legible from the street without turning a window into a wall

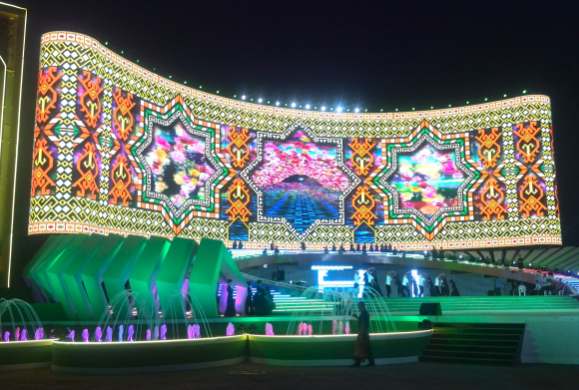

- Landmark & destination signage — curved and 90° corner configurations make it a fit for wraparound architectural features and building corners
- Airports & transit infrastructure — EMC Class-B certification, low power draw, and reliable 24/7 operation suit high-visibility public environments with strict compliance requirements
- Experiential & event installations — the transparency effect creates a visual layering that solid displays can't replicate, making it a strong choice for immersive branded environments
WHAT SETS IT APART

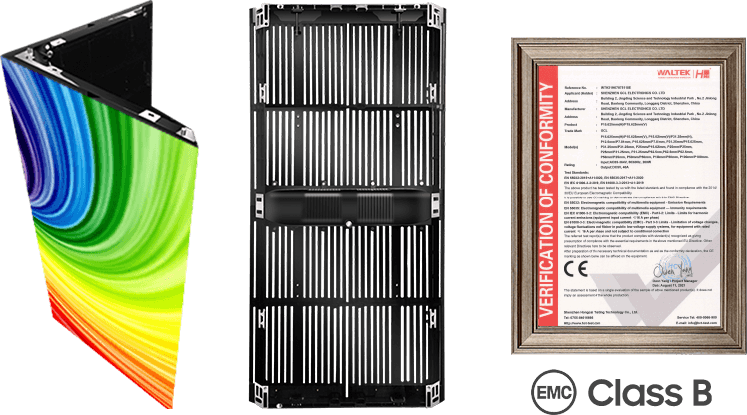

EMC Class-B certificated
- Our products are EMC Class-B certificated,
- Safer and more environment

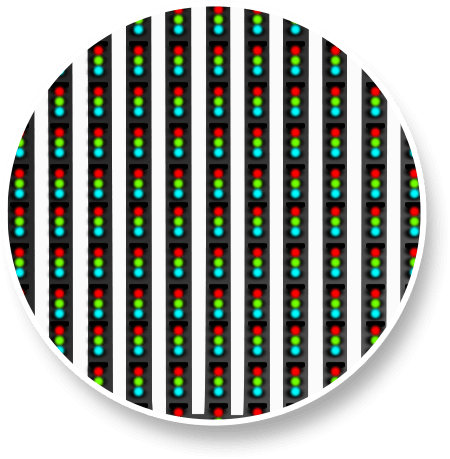

Transparency That Works Both Ways
- Up to 50% light transmittance isn't just an aesthetic feature — it's a structural one. Less material means lower wind load on the mounting structure, better natural heat dissipation, and a dramatically lighter panel. For large-scale facade projects with strict structural or engineering constraints, those aren't small advantages.
Light Enough for Projects That Rule Out
- Other Displays At under 20 lbs per panel, the Gmesh is one of the lightest outdoor fixed panels in the lineup. Large installations that would require significant structural reinforcement with heavier panels become more straightforward to engineer and install — and easier to permit.
Installation and Service That Respects the Job Site
- Integrated power and signal cabling cuts wiring time in half compared to separate cable runs — a genuine labor saver on large facade projects. Once installed, modules and internal components are accessible from both the front and rear with minimal disassembly. On a building facade where rear access may be constrained, front serviceability isn't just convenient — it's often essential.

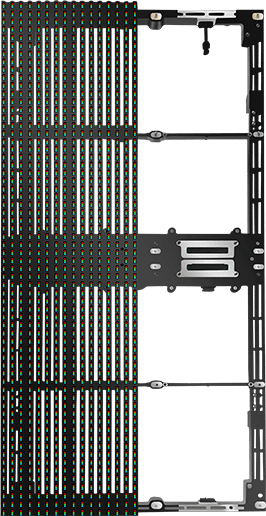

Easy Maintenance
- Loose 8 screws to dismount each module
- Loose 8 screws to dismount the front cover, then dismount the power supply, receiving card and HUB card

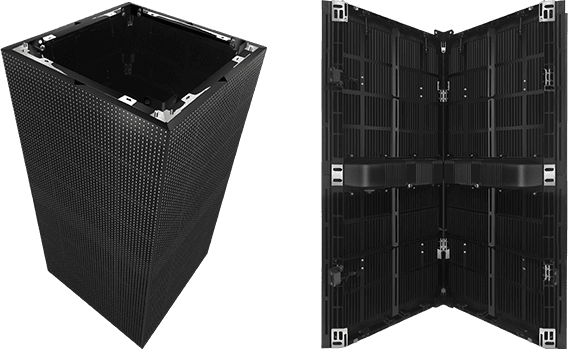

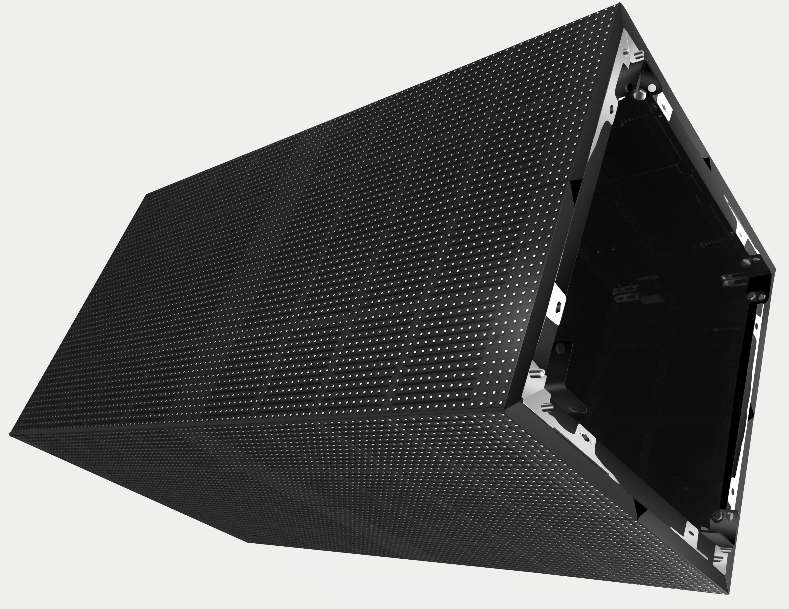

Seamless 90°Splicing

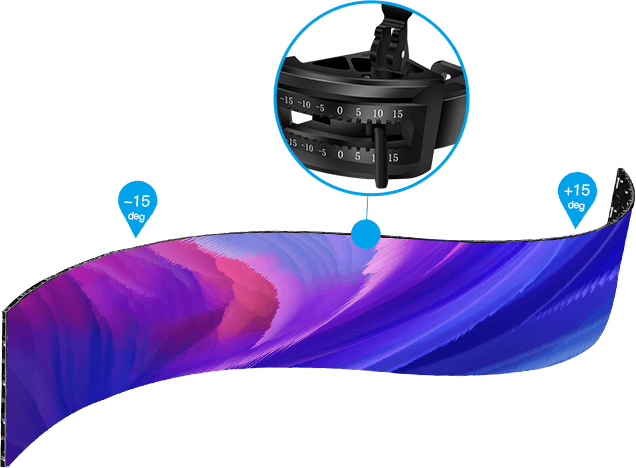

Shape It, Curve It, Corner
- It Panels support concave and convex curve locking across a meaningful range, and the 45° chamfered edge allows seamless 90° corner assemblies without visible seams or custom fabrication. For architects and designers working with non-flat surfaces or building-corner applications, the Gmesh adapts to the geometry of the project rather than the other way around.

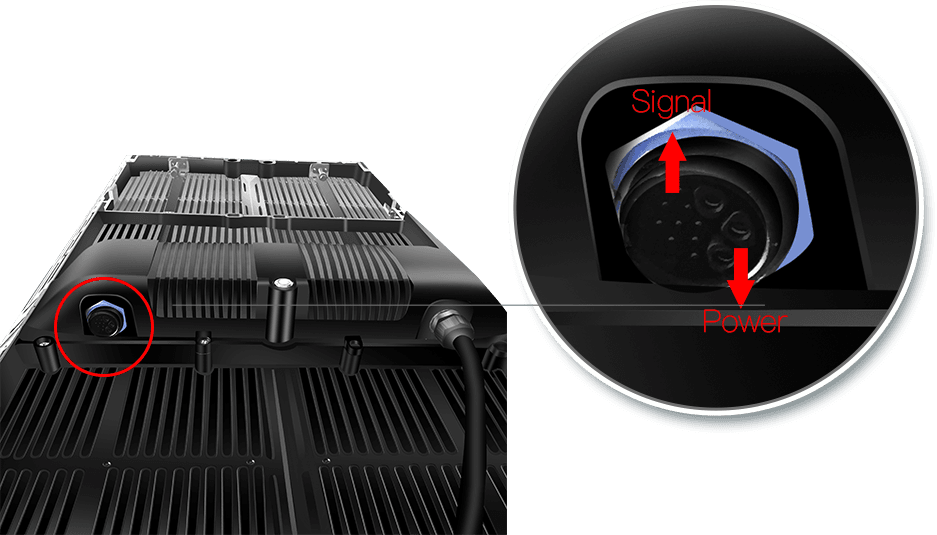

Integrated Power and Signal Cable
- Save 50% of the cable connecting time

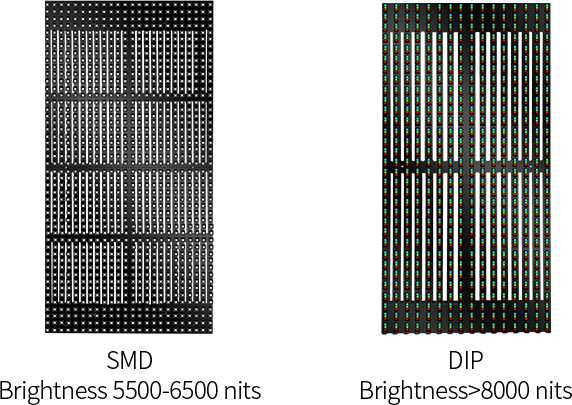

SMD or DIP
- Choose the Right Tool The Gmesh is available in both SMD and DIP LED configurations, giving integrators flexibility to match the display to the environment. SMD suits installations where subtler brightness levels and wider viewing angles are the priority. DIP delivers 10,000 nits for locations where direct sun and maximum legibility matter more than everything else.
Technical Parameter
| Product | P3.9 | P10 | P16-A | P16-B | P16-C | P25 | P31.25 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 3.9-7.8mm | 10.4mm | 15.625mm | 15.625mm | 15.625-31.25mm | 25-31.25mm | 31.25mm |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 | DIP346 | DIP346 | DIP346 |
| Brightness | 5500nits | 10000nits | 10000nits | 10000nits | 10000nits | 10000nits | 10000nits |
| Scan Rate | 1/8 | 1/3 | Static | Static | Static | Static | Static |
| Refresh Rate | 3840Hz | ||||||
| Panel Size | H39.4" xW19.7" | ||||||
| Module Size | H19.7"xW4.9" | H19.7" xW9.85" | |||||
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight | 21 lbs | 21 lbs | 19.8 lbs | 23 lbs | 21 lbs | 21 lbs | 21 lbs |
| Protection Level | IP65 | ||||||
| Maintenance | Front&Rear Service | ||||||
| Max Power Consumption | 320W/panel | 210 W/panel | 210 W/panel | 175 W/panel | 175 W/panel | 175 W/panel | 175 W/panel |
| Average Power Consumption | 160W/panel | 105 W/panel | 105 W/panel | 88 W/panel | 88 W/panel | 88 W/panel | 88 W/panel |
| Grey Scale | 16bit | ||||||
| Viewing Angle | H120°, V120° | H100°, V50° | H120°, V55° | H100°, V50° | |||
| Input Voltage | Wide Range 100-240VAC | ||||||
| Working Temperature | -22°F to+ 158°F | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 3000-10000K | ||||||
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/BIS | ||||||
Contact Us
READY TO SPEC IT?
Our Dallas-based sales engineering team works directly with integrators and project teams across North America. If you’re evaluating the Gmesh for a facade or architectural installation, we can help you work through the configuration.
