GTV
GTV Series COB LED Display
Ultra-Thin, All-Front Service Ultra HD LED Wall for Wall-Mounted Installations
The GTV Series COB LED Display is a premium wall-mounted Ultra HD LED screen designed for corporate spaces, control rooms, broadcast studios, retail environments, and high-end commercial displays. Featuring flip-chip COB technology, a native 16:9 aspect ratio, and a fully all-front maintenance design, GTV delivers exceptional image quality, reliability, and installation efficiency.
GTV Series Applications

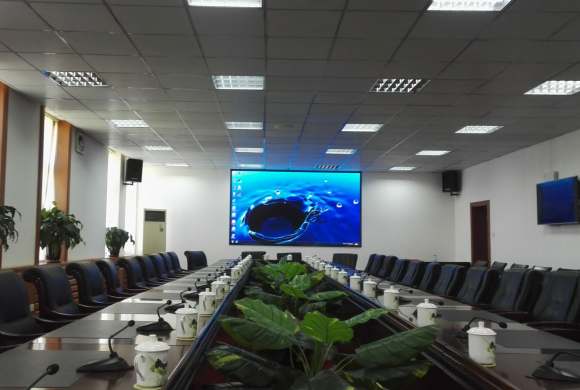

- Corporate conference rooms
- Control rooms and command centers
- Broadcast and studio environments
- High-end retail displays
- Education and training centers
- Lobby and architectural installations

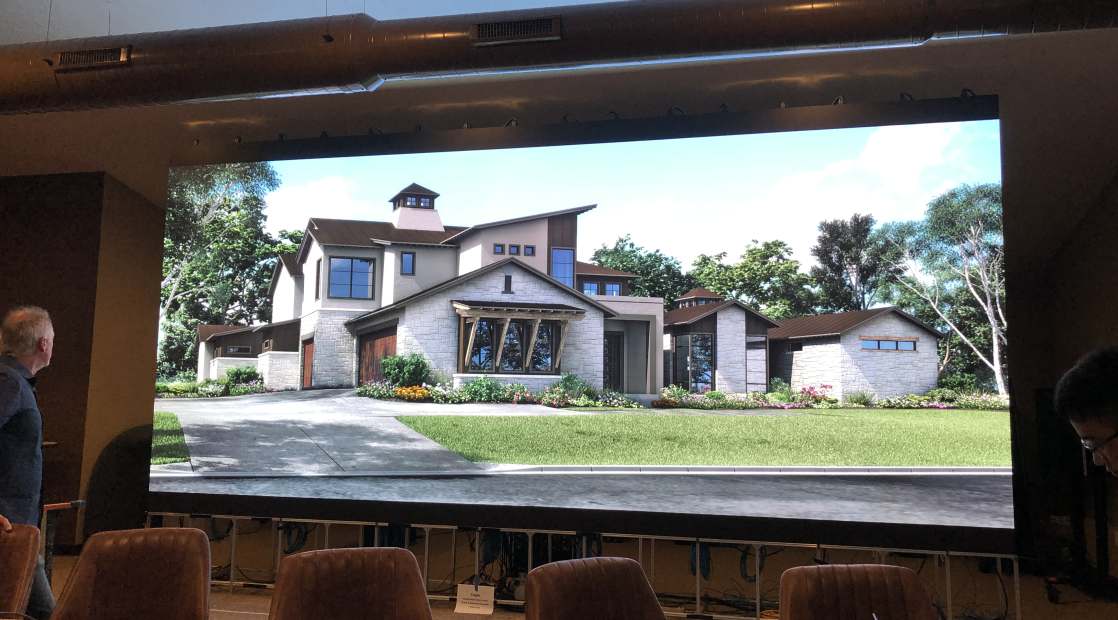

Native 16:9 Ultra HD LED Wall
Seamless 2K / 4K / 8K Display Performance
The GTV Series uses a 27-inch cabinet design that naturally achieves a 16:9 golden ratio, allowing seamless stitching for Ultra HD 2K, 4K, and 8K LED walls without image distortion.
- Full display sizes from 75 inches to 220 inches
- Pixel-perfect image stitching
- Ideal for conference rooms, studios, and visualization centers
- The wide viewing angle ensures clear, lifelike visuals from any perspective, whether viewed up close or from a distance.

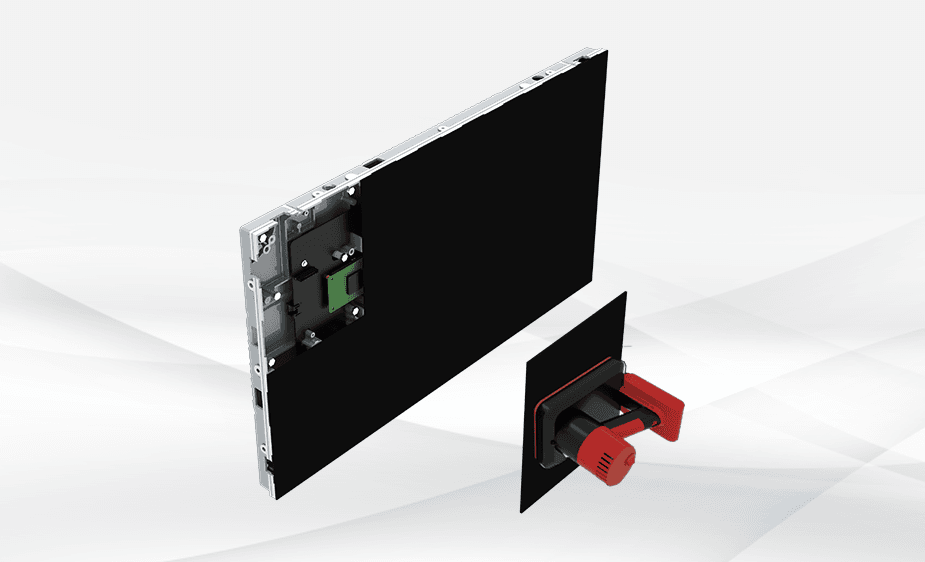

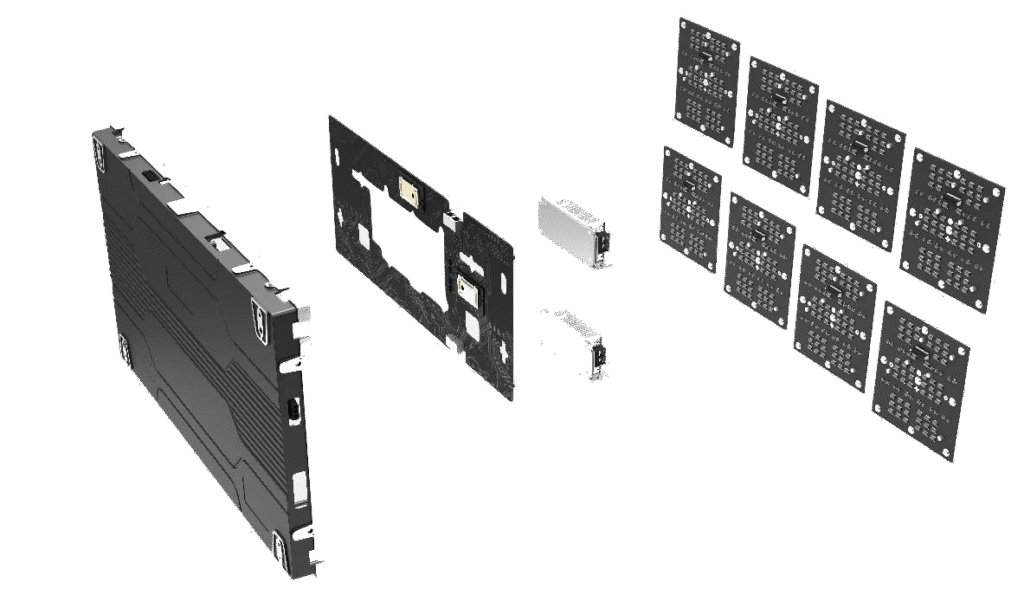

All-Front Service LED Display
Designed for Wall-Mounted Projects
All modules, power supplies, and internal components can be fully accessed from the front, making the GTV Series ideal for wall-mounted LED installations.
- Front maintenance advantages:
- No rear access required
- Faster installation and servicing
- Reduced downtime
- Magnetic modular design for quick replacement

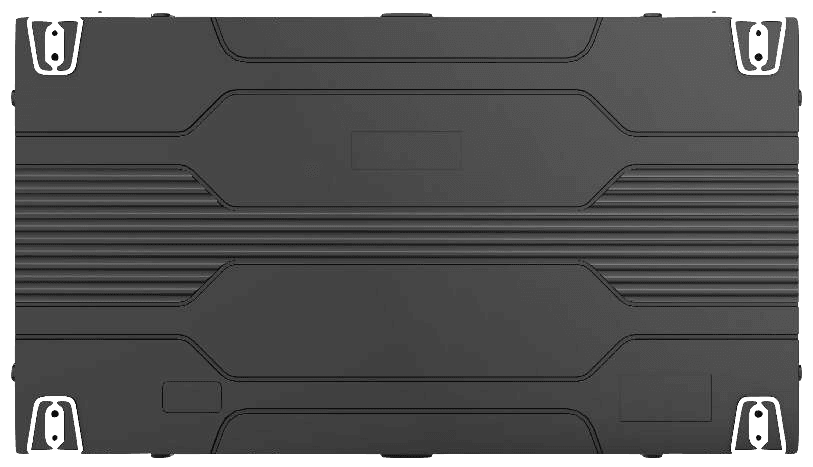

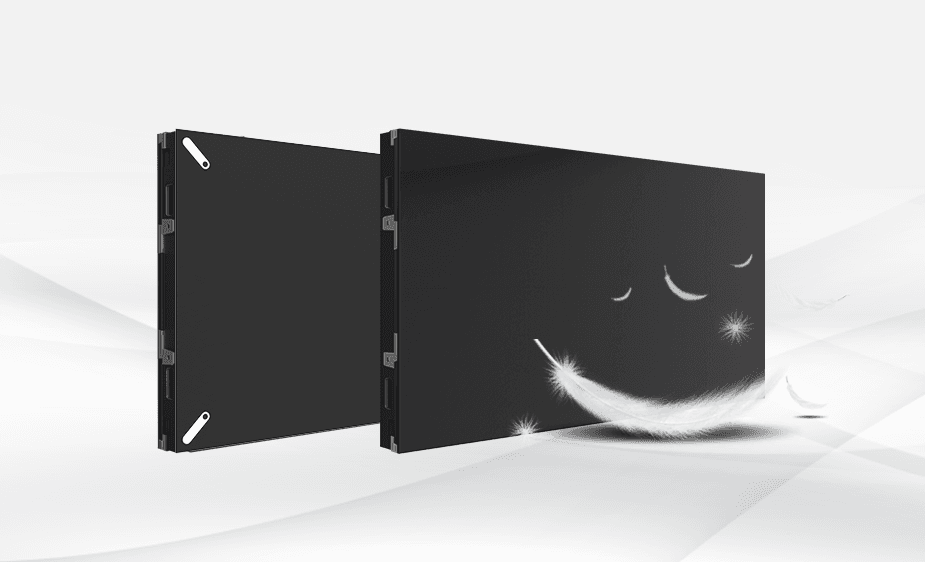

Ultra-Thin & Lightweight LED Cabinet
Only 32mm Thick — No Steel Structure Required
The die-cast aluminum cabinet design delivers exceptional strength while remaining ultra-thin and lightweight.
This makes the GTV Series perfect for space-constrained installations and high-end architectural environments.
- Cabinet thickness: as thin as 1.6”
- Weight: 10.5 lbs per panel
- No additional steel structure required
- Low load requirements for walls and mounting systems
Exceptional Image Quality & Color Accuracy
High Contrast, Deep Blacks & 16-Bit Color Depth
- The GTV Series delivers outstanding display performance with:
- Darker blacks and brighter whites
- Ultra-high contrast ratio
- 16-bit color depth for smooth gradients
- Frame rate up to 7680Hz for fluid motion
These features enhance image clarity, detail, and realism for professional viewing applications.
Screen-Off Mirror Black Glossy Finish
LCD-Like Appearance with LED Performance
The screen-off mirror black glossy finish ensures ultra-high consistency in ink color and brightness. Combined with single-module calibration technology, the GTV Series achieves a visual appearance comparable to high-end LCD displays, while maintaining the scalability and brightness of LED.

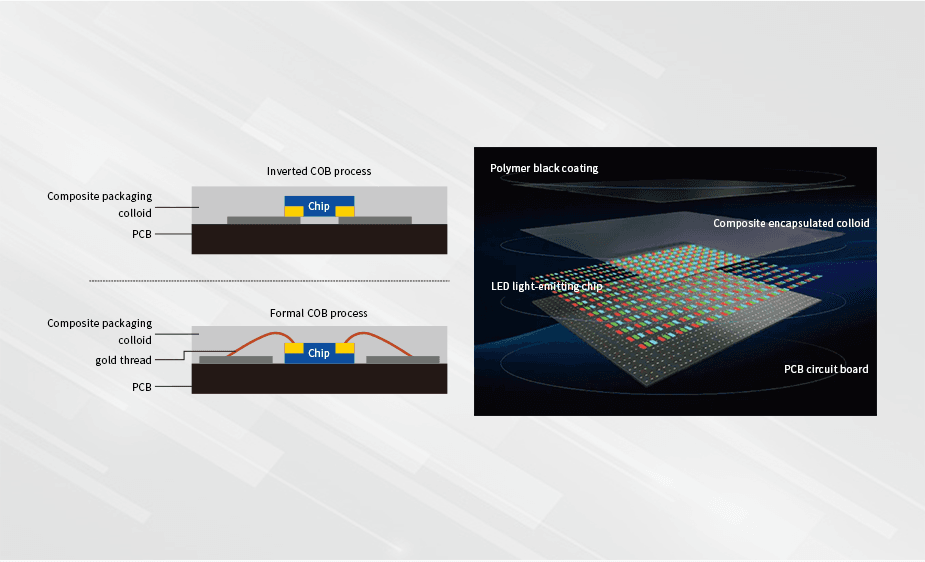

Flip-Chip COB LED Technology
Higher Brightness, Better Heat Dissipation, Longer Lifespan
- The GTV Series features flip-chip COB LED technology, delivering:
- Brightness up to 1800 nits
- Improved luminous efficiency
- Low thermal resistance for superior heat dissipation
- Extended LED chip lifespan
- Support for smaller pixel pitch Ultra HD displays
This advanced COB structure ensures long-term stability and consistent performance in professional environments.
Ultra-high Resolution
- Full size layout from 75 inches to 220 inches, covering all ultra-high definitions of 2K, 4K, and 8K

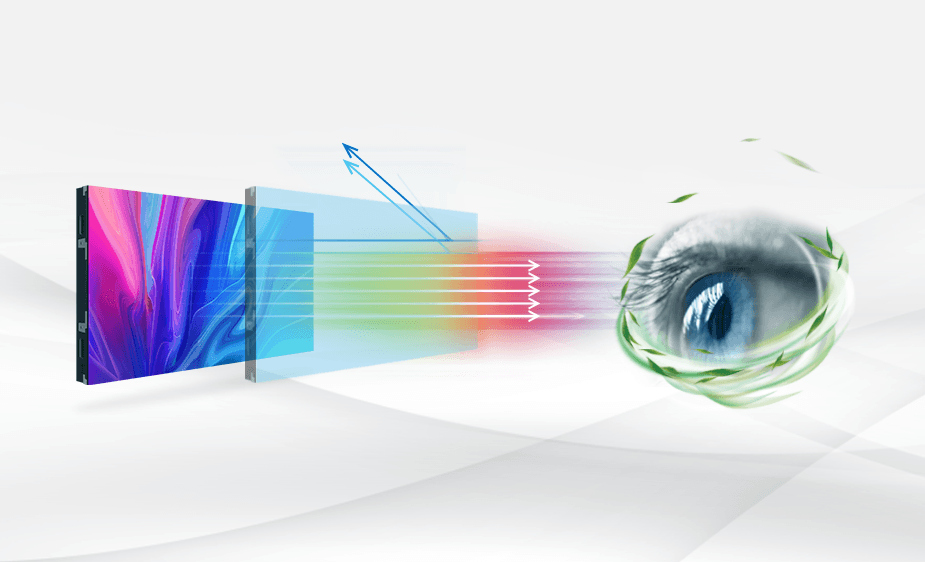

Green, Energy-Efficient & Eye-Friendly Design
The GTV Series incorporates dynamic energy-saving technology and eye-care features:
- Low blue light visual protection
- Large light-emitting chips
- Low-power driving circuits
- Reduced power consumption without sacrificing brightness
This makes it suitable for long-duration viewing environments such as offices and control rooms.

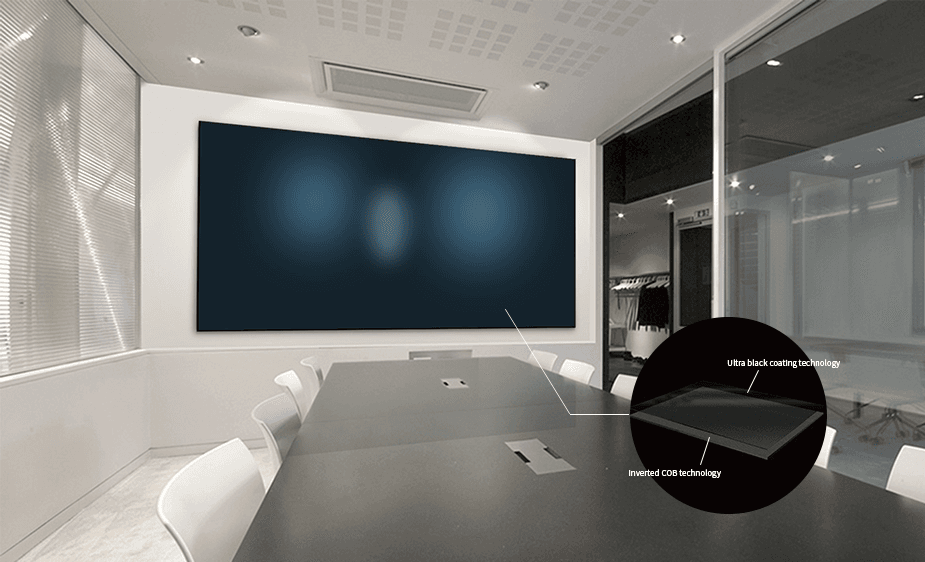

Highly Reliable COB Protection
Built for Long-Term, Mission-Critical Use

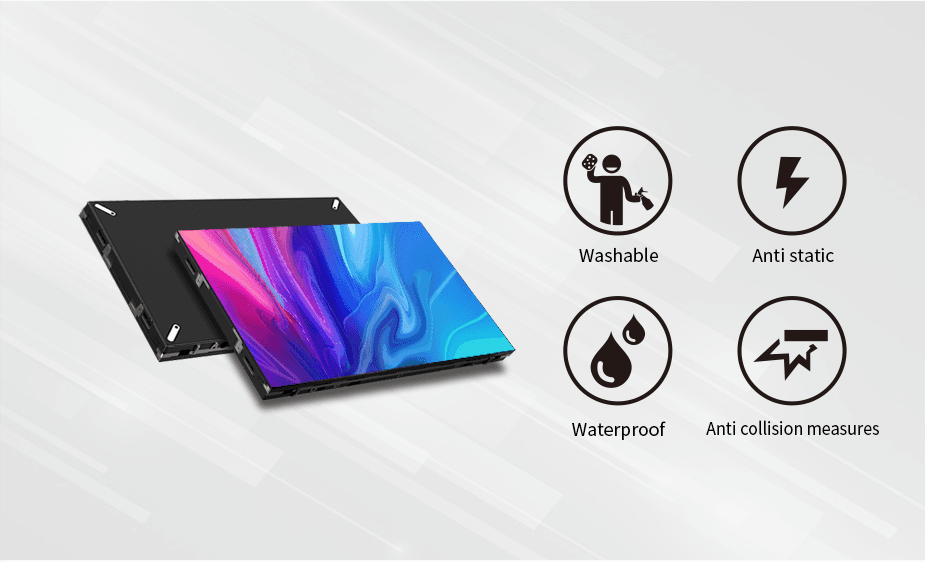

The COB process combined with premium pure black coating technology provides exceptional protection:
- Impact-resistant and drop-resistant
- Highly sealed structure
- Water-resistant and moisture-proof
- Anti-static and spray-resistant
This ensures stable performance even in demanding commercial or semi-industrial environments.
Dual Power & Signal Backup
Worry-Free Continuous Operation
The GTV Series features dual backup for both power and signal, ensuring uninterrupted operation. If one system encounters an issue, the backup system takes over immediately, preventing display downtime and data loss during power interruptions.
Technical Parameter
| Product | P0.7 | P0.9 | P1.2 | P1.5 | P1.875 | ||
|---|---|---|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.93mm | 1.25mm | 1.56mm | 1.875mm | ||
| Assembly Technology | Flip Chip COB | Flip Chip COB | Flip Chip COB | Flip Chip COB | GOB | ||
| Brightness | 600-800nits | ||||||
| Refresh Rate | 3840HZ / 7680HZ | ||||||
| Panel Size | W23.6"xH13.3" (W600xH337.5 mm) | ||||||
| Panel Resolution (Pixel) | 768x432 | 640x360 | 480x270 | 384x216 | 320x180 | ||
| Module Size | WS.9"xH6.65"(W1S0xH168.75 mm) | ||||||
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight | 10.5 lbs | ||||||
| Protection Level | Front: IP54, Rear: IP34 | ||||||
| Maintenance | Front & Rear Service | ||||||
| Max Power Consumption | 120 watts | 100 watts | 82 watts | 60 watts | 120 watts | ||
| Average Power Consumption | 60 watts | 50 watts | 41 watts | 30 watts | 60 watts | ||
| Grey Scale | 16bit | ||||||
| Viewing Angle | H175°, V175° | H160°, V160° | |||||
| Input Voltage | Wide Range 100-240VAC | ||||||
| Working Temperature | -22°F to+ 149°F | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 6500-9500K | ||||||
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO | ||||||
