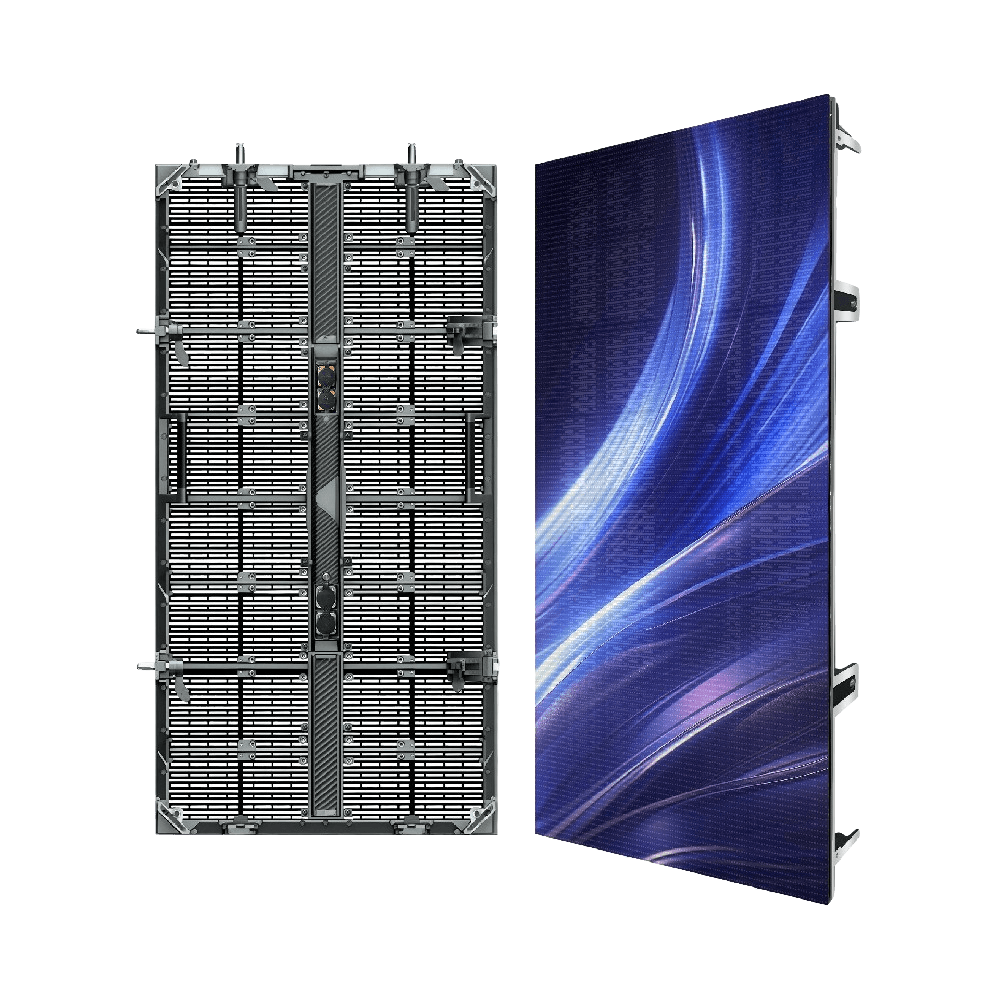

Gflow
Gflow Series
Rental LED Display Panels
Pixel Pitch Option: P3.9–7.8mm
The Gflow Series is a lightweight, blown-through, high-transparency LED rental display engineered for outdoor environments and creative staging applications. Featuring a durable structure, wide viewing angles, multiple panel sizes, and advanced curvature options, the Gflow Series offers rental companies a flexible solution for concerts, festivals, outdoor events, brand activations, and large-scale productions that require both visual impact and practical efficiency.
Features
- Lightweight: 19.8 lbs/panel
- 50% High transparency
- Outdoor rated
- 45°panel chamfer for 90°installation
- High contrast ratio
- Curve Degree: -15° to +15°
Gflow Series Features
Blown-through Panel Design
- The blown-through panel design allows wind to pass freely through the display, reducing wind resistance and improving structural stability in outdoor environments. This minimizes the risk of tipping or damage during strong winds, making the unit safer for outdoor events and concerts. Additionally, the open-panel structure promotes natural airflow, helping with heat dissipation and maintaining consistent performance even under prolonged outdoor use.

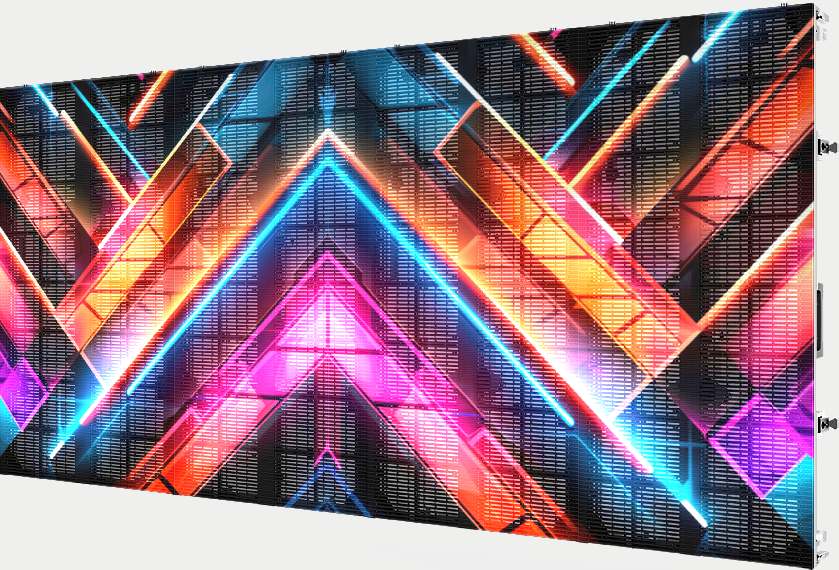

50% High Transparency for Natural Ventilation
- With up to 50% light transmittance, the Gflow Series reduces wind resistance and supports excellent natural heat dissipation—eliminating the need for air conditioning or additional cooling systems. This high-transparency design makes it ideal for outdoor creative displays, stage backdrops, and installations that benefit from a partially see-through screen structure.

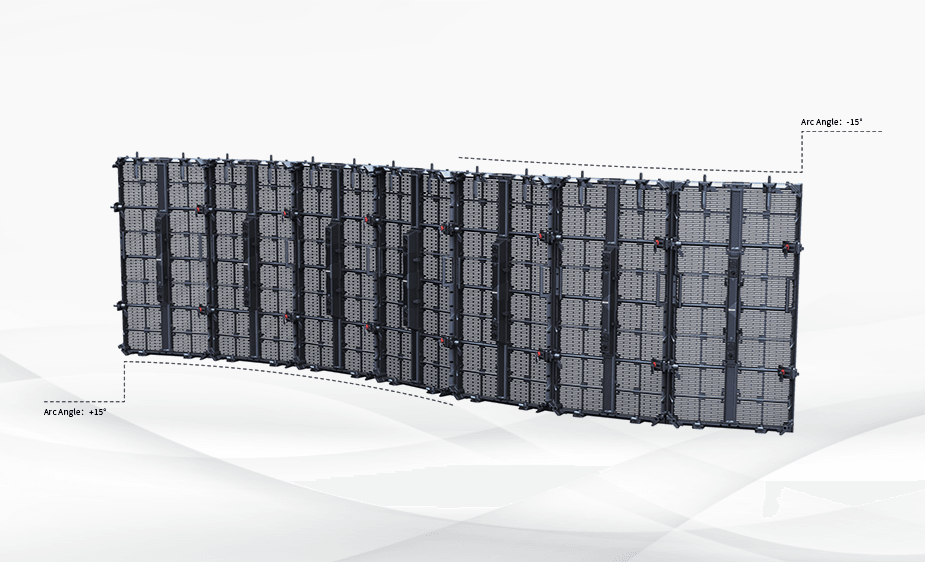

Curved Screen Capability
The integrated curvature lock offers a range from -15° to +15°, allowing the Gflow Series to support:
- Straight configurations
- Concave screens
- Convex screens
This flexibility makes the panels suitable for immersive stage environments, curved LED walls, and creative rental applications where visual form is part of the design.

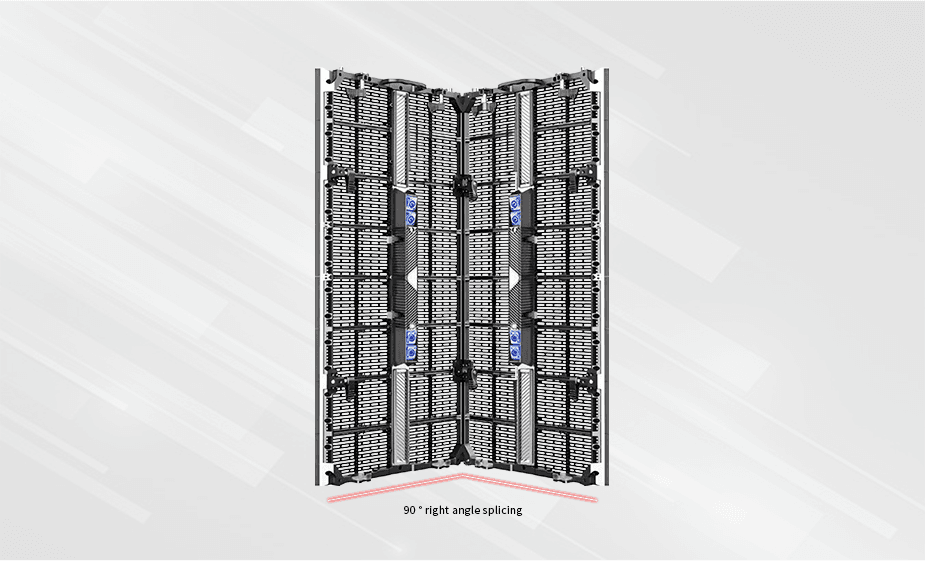

Outer 90-Degree Angle Installation
- The panels are built with a 45° chamfer, enabling outer 90-degree corner installations. This allows designers to construct wrap-around displays, L-shaped corners, and other unique structures often needed in staging, retail experiences, and event activations.
High Brightness & High Contrast Ratio
- The Gflow Series delivers clear, impactful visuals in outdoor daylight with 4500 nits of brightness. Combined with a 6000:1 contrast ratio, the display maintains excellent clarity and detail even during evening shows or nighttime events, ensuring consistent quality across all lighting conditions.

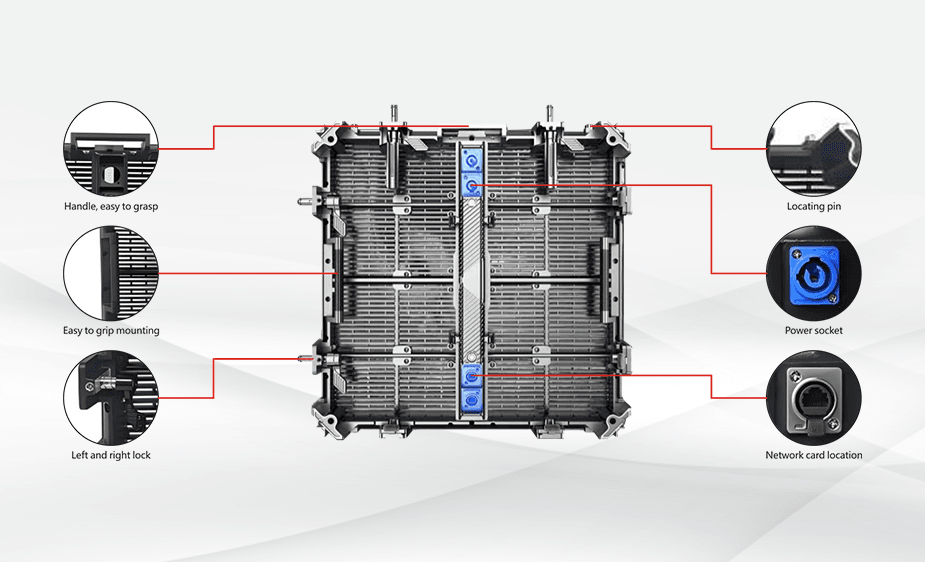

Panel Functionality for Faster Setup
The Gflow Series includes thoughtful structural features to support efficient operation:
- Upper and lower positioning pins for precise alignment
- Left and right quick locks for rapid panel connection
- Integrated power and network connectors designed for fast plug-and-play installation
These elements help reduce installation time and improve workflow on busy event sites.

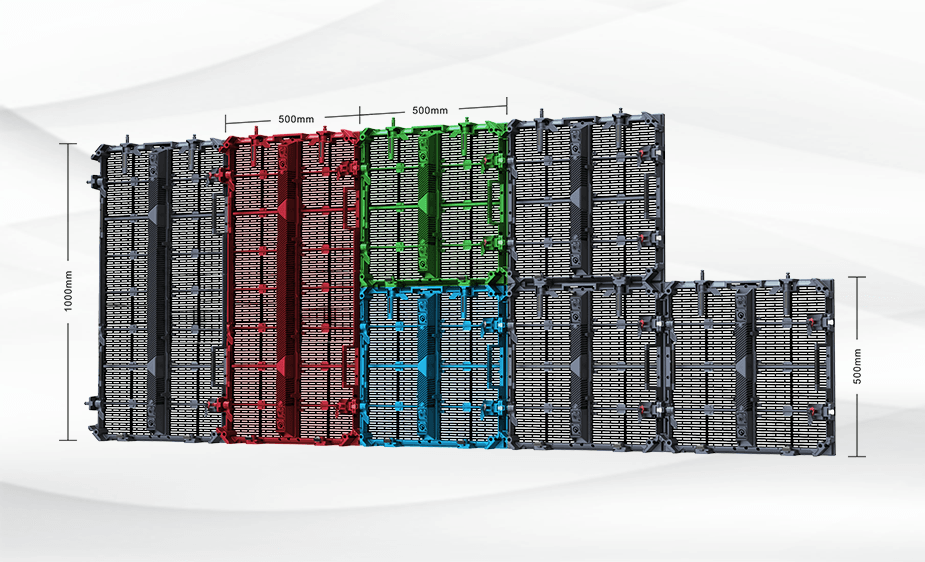

Two Versatile Panel Sizes
- Choose between 500×500mm and 500×1000mm panel sizes, which can be mixed vertically and combined seamlessly. This versatility allows rental companies to adapt to a wide range of stage designs, screen heights, and creative concepts—while also reducing operating costs and simplifying inventory management.

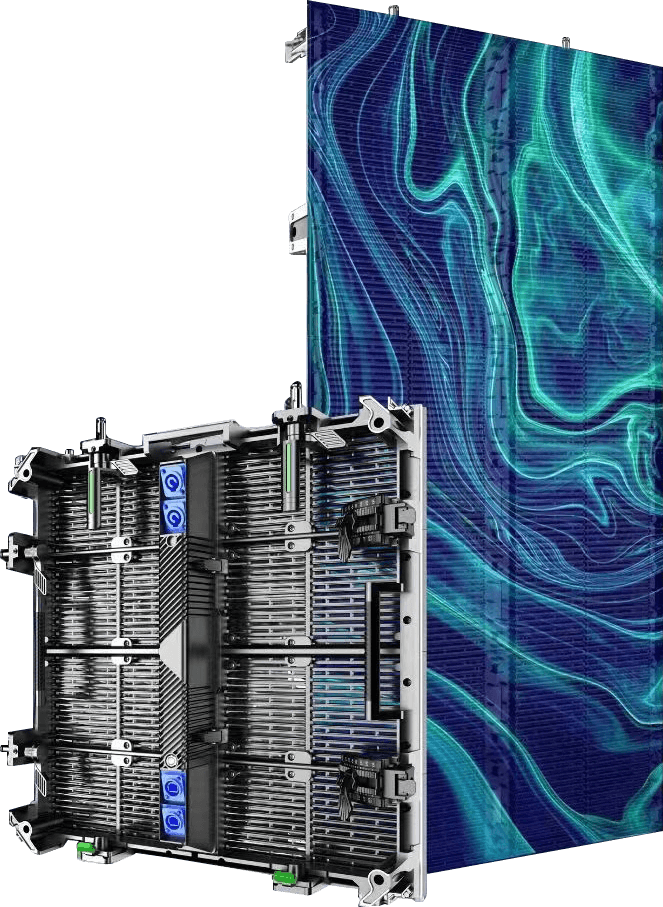

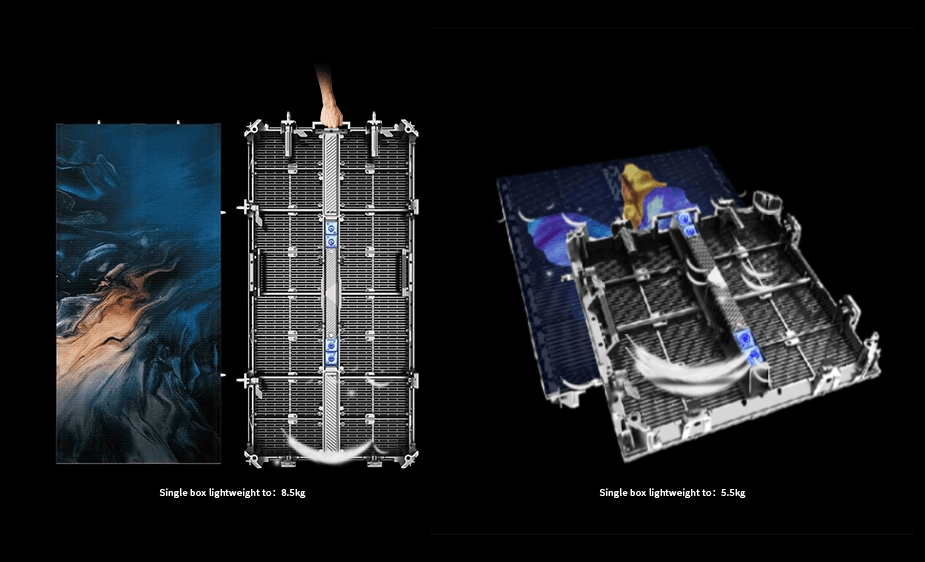

Lightweight Panel Structure
- At only 19.8 lbs per panel, the Gflow Series is designed for easy handling and fast setup. Its die-cast aluminum frame provides strength without excess weight, and the overall design maintains a thin 75mm profile, allowing a single technician to install or service the panels with ease. The lightweight construction applies minimal pressure to building structures and temporary truss systems.

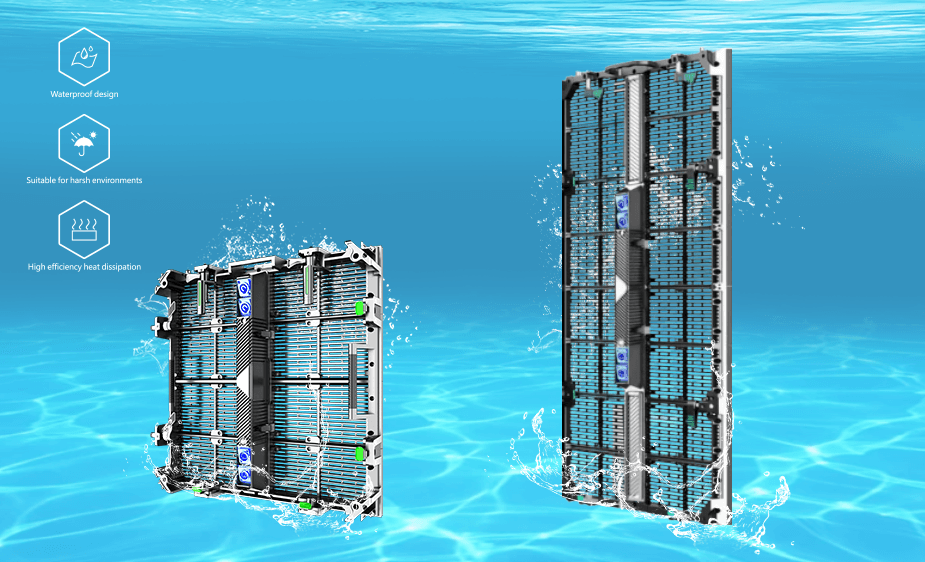

Outdoor-Rated Performance (IP65)
- Built to handle harsh environments, the Gflow Series features an IP65 waterproof rating, ensuring reliable performance in rain, dust, humidity, and fluctuating temperatures. This makes it suitable for both short-term rental events and longer-term outdoor installations.

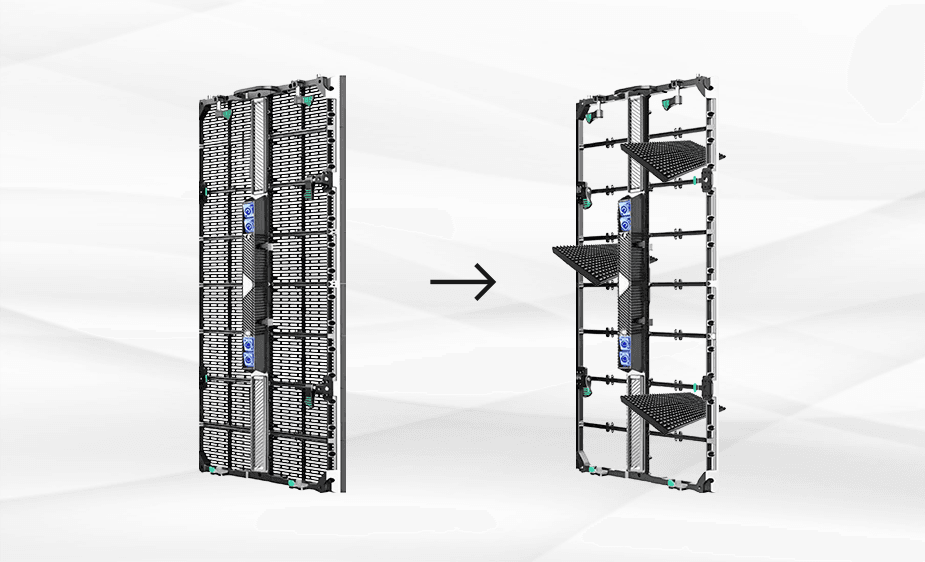

Easy Rear Maintenance
- Modules on the Gflow Series are rear-removable, enabling quick, convenient access for plug-and-play servicing. This minimizes downtime and supports efficient maintenance during events or in warehouse environments.
High Refresh Rate for Clear Motion Display
- With a 7680Hz high refresh rate, the Gflow Series offers smooth, flicker-free visuals that are comfortable on the eyes and suitable for professional video capture. This ensures optimal viewing for live audiences and improves the visual quality of recorded content.
Ultra-Wide Viewing Angles
- The Gflow Series supports a 140° horizontal and 140° vertical viewing angle, ensuring consistent visual quality from a wide range of perspectives. This is essential for large outdoor events where audiences may be positioned across wide, open areas.
Technical Parameter
| Product | P3.9-7.8 |
|---|---|
| Pitch | 3.9-7.8mm |
| LED Type | SMD1921 |
| Brightness | 4500nits |
| Scan Rate | 1/8 |
| Refresh Rate | 7680HZ |
| Panel Size | W19.7"xH39.37" (500x1000mm) |
| Panel Resolution (Pixel) | 128x128 |
| Module Size | H19.7" xW4.92"(500x 125mm) |
| Panel Material | Die-casting Aluminum |
| Panel Weight | 19.8 lbs |
| Protection Level | IP65 |
| Maintenance | Rear Service |
| Max Power Consumption | 360 watts |
| Average Power Consumption | 180 watts |
| Grey Scale | 16bit |
| Viewing Angle | H160°, V160° |
| Curve Degrees (Optional) | -15°~+15° |
| Input Voltage | Wide Range 100-240VAC |
| Working Temperature | -22°F to +158°F |
| Working Humidity | 10%-90%RH |
| Color Temperature | 6500-9500K |
| Certifications | UL/EMC/CE/ROHS/CCC/FCC/ISO |
Summary of Gflow Series Advantages
- Blown-through panel design
- Lightweight design for easy, single-person handling
- 50% transparency for ventilation and natural cooling
- Outdoor-ready IP65 protection
- Curved screen capability from -15° to +15°
- Supports 90° outer-edge installations
- Available in two panel sizes (500×500mm & 500×1000mm)
- High brightness and contrast for day and night performances
- Quick-lock and alignment systems for fast setup
- Rear module access for easy maintenance
- Wide viewing angles for large crowds
- 7680Hz refresh rate for smooth, stable visuals
Bring Visual Impact to Outdoor Events with the Gflow Series
The Gflow Series is engineered for rental professionals who need reliable outdoor performance, high transparency, and fast installation. Whether you’re designing a festival stage, building a creative LED structure, or supporting a large event, the Gflow Series delivers the flexibility and durability required for demanding environments.
